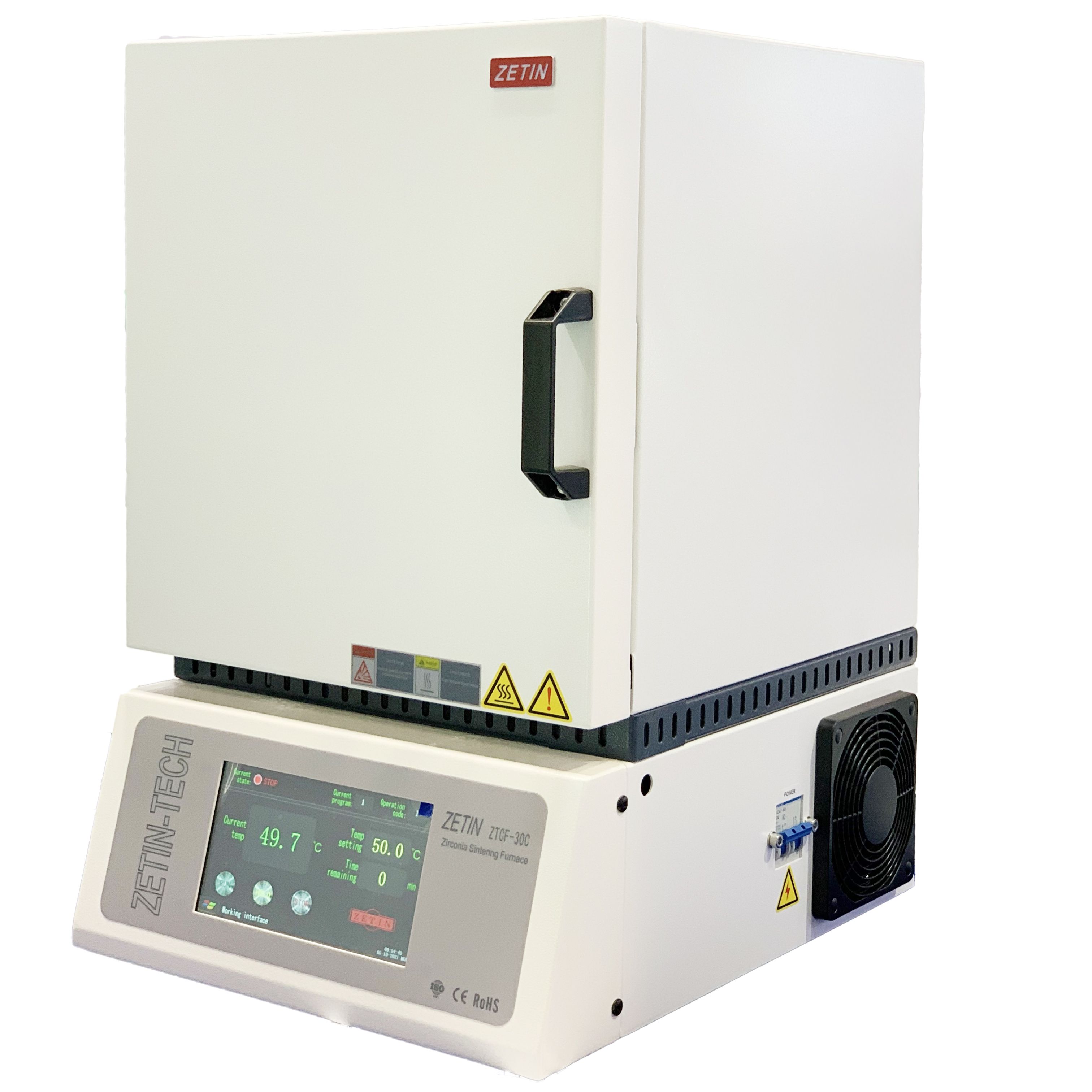

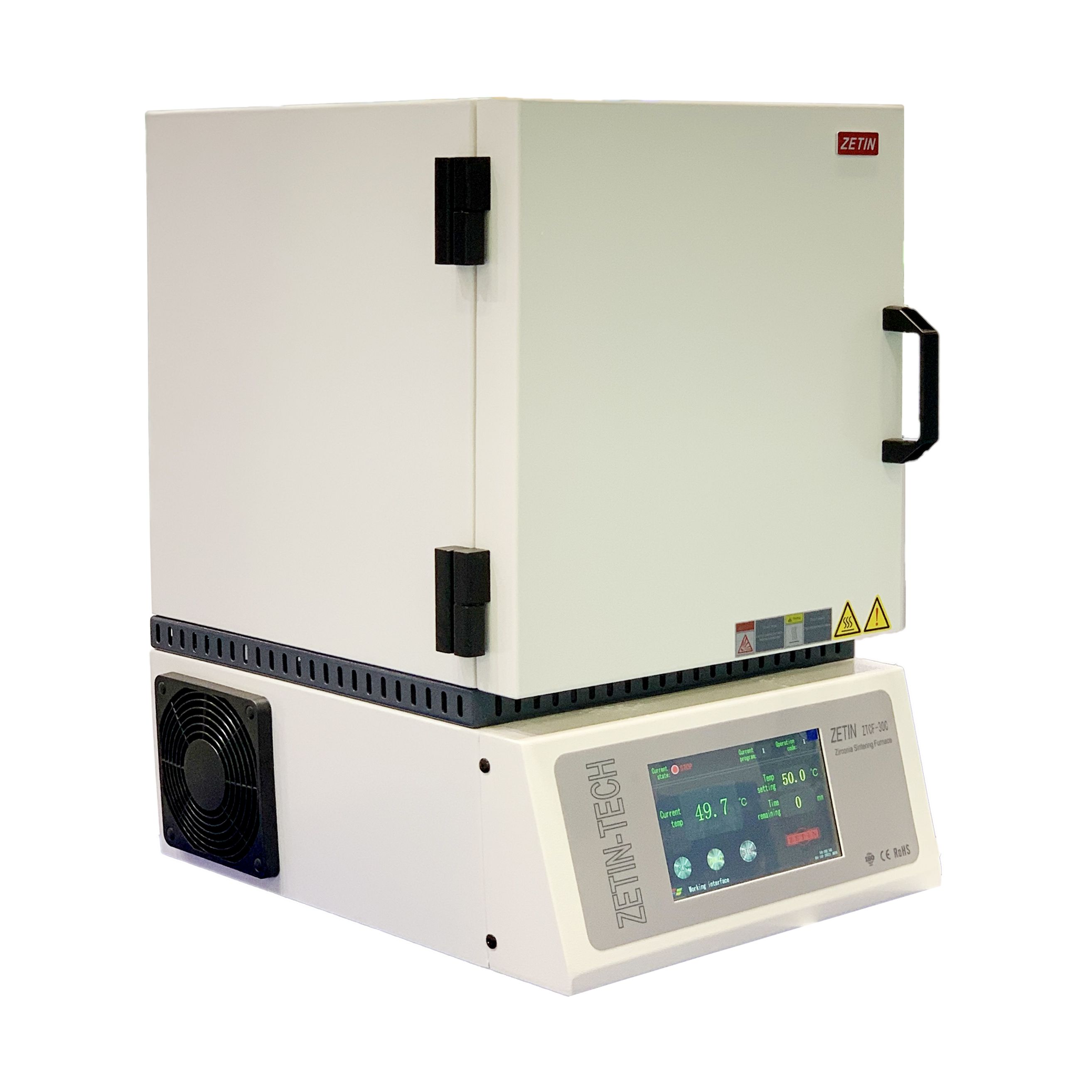

    Zetin Zirconia Sintering Furnace

    ZTCF-30B Mini


    The Zetin box-type sintering furnace adopts a classic door-opening design, with precise temperature control, uniform internal temperature in the chamber of the furnace, and good sealing performance.


    Ⅰ、Technical date


    Max.Temperature

    1730℃

    Temperature Accuracy

    ±1℃

    Touch Screen

    7" TFT

    Power

    3KW

    Voltage

    220V  50/60HZ

    110V  50/60HZ

    Heating Element

    High purity heater especially for dentistry

    Sensor

    Type B

    Regular program

    No.1

    Cleaning program

    No.40

    Total Program No.

    40 programs, with power-off memory function

    Chamber Size

    110*120*130 mm

    Furnace Size

    455*350*553 mm （L*W*H）

    Net Weight

    60 KG


    Ⅱ、Features

    1、Unique safety lock design, the door cannot be opened in working mode, so as to avoid sintering failure;
    2、 The furnace chamber is compact and small, but can sinter up to 80 units;
    3、Using high-purity and no pollution dental silicon molybdenum heating rob;
    4、PID intelligent temperature control system accurately controls the temperature. The actual temperature accuracy is ±1℃;
    5、Total can store 40 Programs;
    6、7-inch color touch screen displays all parameters, easy to modify parameters;
    7、Use green and environmentally friendly thermal insulation materials with an excellent performance makes the temperature more stable;
    8、With memory function, when the power is off and on again, it can automatically start from the beginning of the stage where the power is off.




    Package Including:

    • Box sintering furance 30B mini 1 unit

    • Crucible  3 units

    • Sinter base 1 unit

    • Sintering beads 1 bottle

    • Corundum tube 1 unit

    • Tube base 1 unit

    • Disconnector 1

    • Multimeter 1

    • Repair Kit 1

    • Instruction manual 1

    Ⅲ、FAQ

    Q,Are you the source production factory?
    A,Yes, Zetin has specialized in dental furnace produce for 10 years.
    Q, Do all the product has international certification?
    A,All the products have CE and ISO 9001.
    Q,Can we directly buy a furnace from your plant?
    A,Yes, we accept all kinds of dental furnace orders from different countries.
    Q,What is the minimum order quantity (MOQ)?
    A,MOQ is 1 pcs.
    Q,How to place an order directly to your factory?
    A,You can consult with the online customer service, also you can leave a message on the website, or send an email to zetintech@gmail.com, or call on +86 18538256129, this number same to WhatsApp and WeChat.
    Q, How long is the furnace warranty period？
    A,1 year.
    Q,How long does the production take?
    A,It depends on the order quantity, generally 15 days after receiving the transaction payment.
    Q,What are the trading methods?
    A,EXW, FOB, C&F, CIF, DDU, DDP
    Q,What are shipping methods?
    A,

    Customers can choose any kind of shipping method, by sea, by air, by train, express(UPS, DHL, FedEx, TNT).
