Speed/Fast Zirconia Sintering Furnace
- Price： U.S.＄12000.00

  List price： U.S.＄0.00

  MemberPrice：
  Ordinary： U.S.＄14000.00

  VIP： U.S.＄12000.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Gross Weight:78.00KG
- Certification：
- CE
- Warranty：
- 1 Year
- Size：
- 590 × 470 × 850 mm
- Color：
- White
- Quantity：
- (Inventory1120)
- Agency

  Inquiry

Product parameters

Description

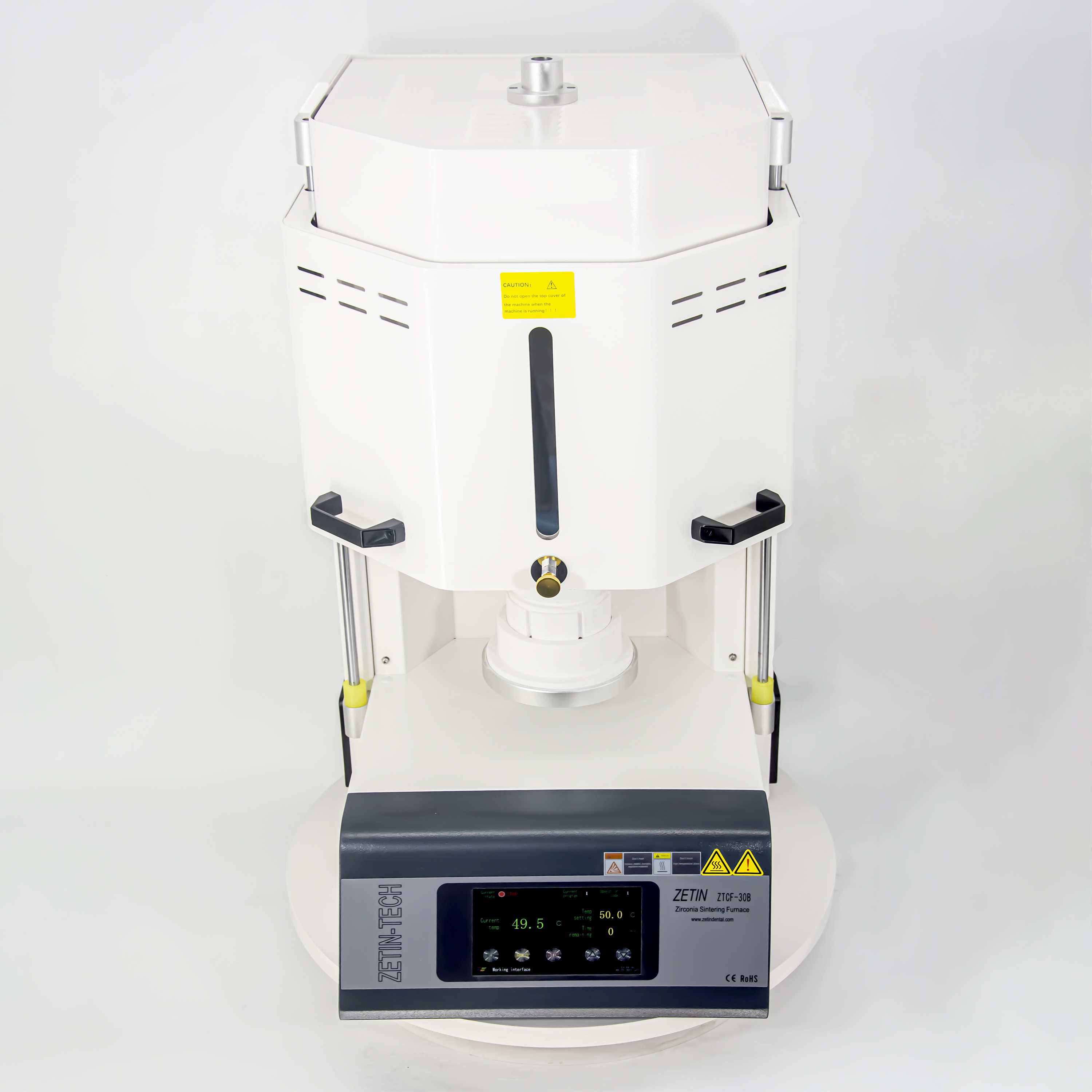

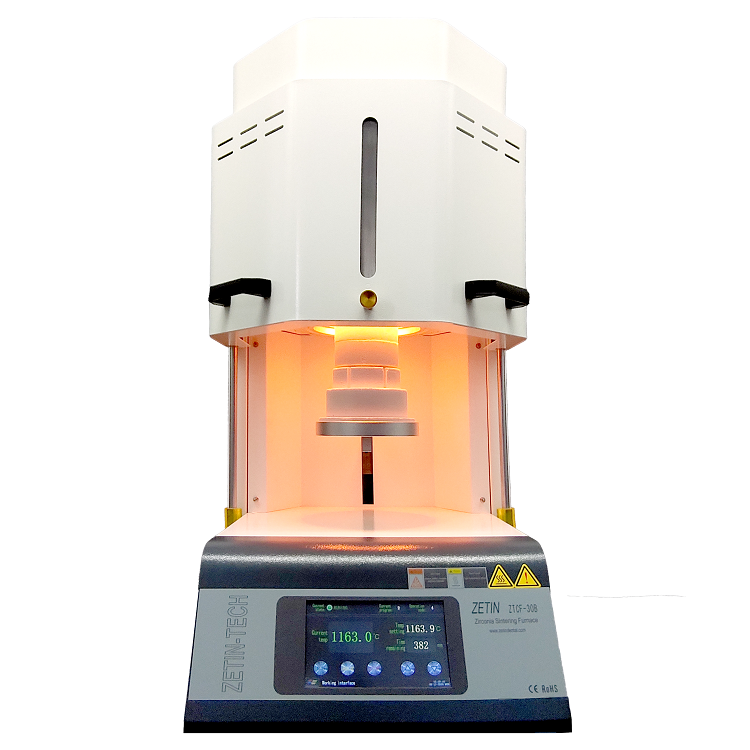

Speed/Fast Zirconia Sintering Furnace

ZTCF-30B Plus

Zetin fast zirconia sintering furnace 30B Plus has integrated speed and standard sintering function in one. The sinter speed of the speed sintering program is 5 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.

Ⅰ. Technical date

Fast Sintering Time	65 min (including heating, keeping warm, cooling)
Regular Program	Can stack 3 layers of the crucible and sinter 150 units teeth;
Max.Temperature	1730℃
Temperature Accuracy	±1℃
Touch Screen	7” TFT Color
Power	3KW
Voltage	220V 50/60HZ 110V 50/60HZ
Heating Element	High purity heater especially for dentistry
Regular Program	No.1
Fast Program	No.2
Cleaning Program	No.40
Total Program No.	40 programs, with power-off memory function
Chamber Size	Ø 110*120 mm
Size	590470850 mm(LWH)
Net Weight	60 KG

Ⅱ. Features

1、	The fast sintering program takes only 65 mins (including heating, keeping warm, and cooling);
2、	In the regular program, you can stack 3 layers of crucibles and sinter up to 150 units;
3、	High-purity and pollution-free dental silicon molybdenum rods;
4、	PID intelligent temperature control system accurately controls the temperature. The actual temperature accuracy is ±1℃;
5、	Total can store 40 Programs;
6、	7"inch color touch screen, display all parameters, easy to modify parameters;
7、	Green environmental friendly thermal insulation materials with excellent performance make the temperature more stable;
8、	With memory function, when the power is off and on again, it can automatically start from the beginning of the stage where the power is off.

Ⅲ. Notices

When you received the new furnace before you start to use them, please use the No.40 program to sinter the new crucible, zirconia beads, and furnaces first.
To avoid the crucible crush, please put the crucible cover on the sintered base then put the crucible on the cover.
There are 3 programs had been set, when you need to set up the new program, please click the windows button, and press the third line program editor to enter the program edit screen.
When the furnace has not been used for a while, you want to use it again, please use the No.40 program to clean the furnace first.
Don’t forget to cover the crucible when you start to run the program.

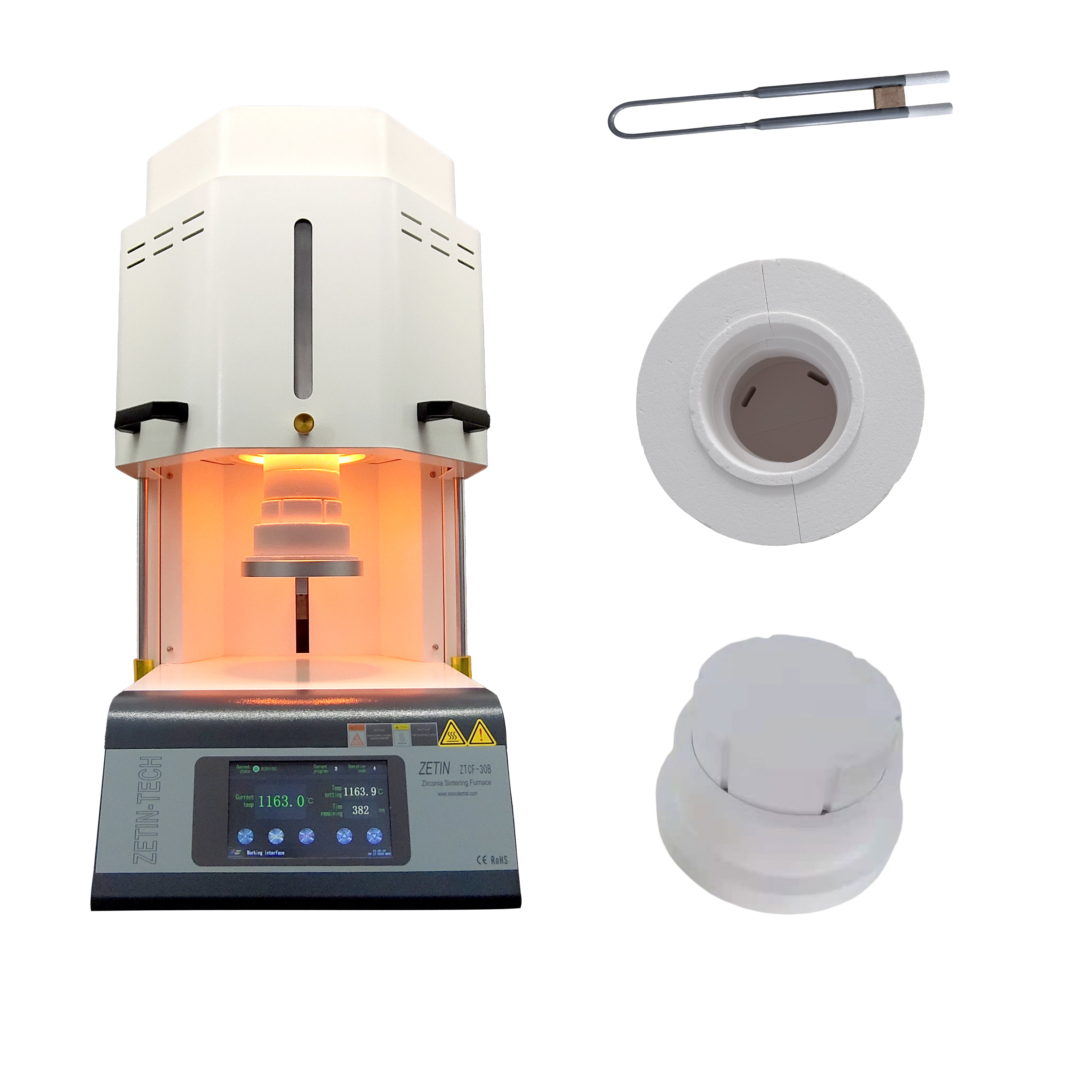

Package Including:

Speed sintering furnace 30B plus 1 unit
Crucible 3 units
Sinter base 1 unit
Sintering beads 1 bottle
Corundum tube 1 unit
Tube base 1 unit
Disconnector 1
Multimeter 1
Repair Kit 1
Instruction manual 1

Ⅲ、FAQ

Q,	Are you the source production factory?
A,	Yes, Zetin has specialized in dental furnace produce for 10 years.
Q,	Do all the product has international certification?
A,	All the products have CE and ISO 9001.
Q,	Can we directly buy a furnace from your plant?
A,	Yes, we accept all kinds of dental furnace orders from different countries.
Q,	What is the minimum order quantity (MOQ)?
A,	MOQ is 1 pcs.
Q,	How to place an order directly to your factory?
A,	You can consult with the online customer service, also you can leave a message on the website, or send an email to zetintech@gmail.com, or call on +86 18538256129, this number same to WhatsApp and WeChat.
Q,	How long is the furnace warranty period？
A,	1 year.
Q,	How long does the production take?
A,	It depends on the order quantity, generally 15 days after receiving the transaction payment.
Q,	What are the trading methods?
A,	EXW, FOB, C&F, CIF, DDU, DDP
Q,	What are shipping methods?
A,	Customers can choose any kind of shipping method, by sea, by air, by train, express(UPS, DHL, FedEx, TNT).
