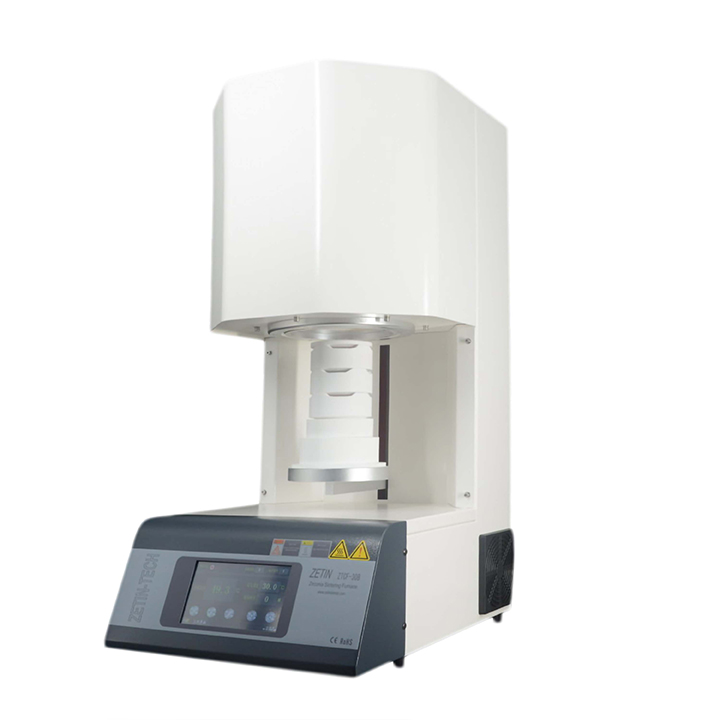

    Zetin Siliconit Zirconia Sintering Furnace

    ZTCF-30B SiC

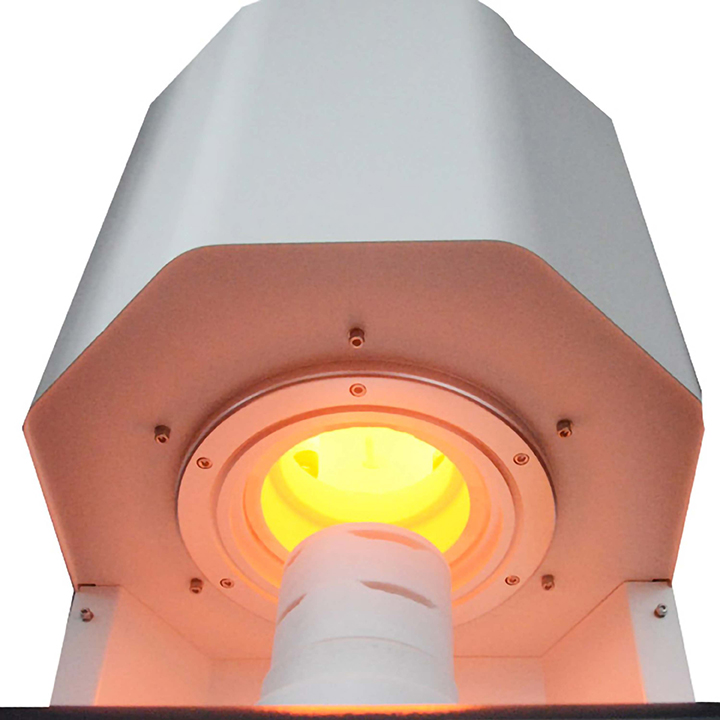

    The Zetin Siliconit sintering furnace is equipped with SiC rod heating elements, and there is no pollution during the sintering process. its sintering speed is 5 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has a good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.


    Ⅰ、Technical date


    Fast Sintering Time

    2.5 hours (including heating, keep warm, cooling),

    Max can sinter 80 units.

    Regular Program

    Can stack 3 layers crucible and sintering 150 units teeth.

    Max.Temperature

    1560℃

    Temperature Accuracy

    Within ±1℃

    Heating Rate

    ≤40℃/min

    Heating Element

    Professional silicon carbide rods used in dentistry

    Touch Screen

    7" TFT

    Sensor

    Type B

    Power

    3KW

    Voltage

    220V  50/60HZ

    110V  50/60HZ

    Regular Program

    No.1

    Fast Program

    No.2

    Total Program No.

    40 programs, with power-off memory function

    Chamber Size

    Ø110*120 mm

    Size

    590*400*850 mm （L*W*H）

    Net Weight

    78 KG


    Ⅱ、Features

    1、The fast sintering program only takes 2.5 hours (including heating, keep warm, cooling), and can sinter 80 units of teeth;
    2、
    In the regular sintering program, you can stack 3 layers of crucibles and sinter 150 units of teeth;
    3、Using a world-famous brand of dental silicon carbide rods will not pollute the dentures, no need for sintering maintenance;
    4、The color of sintered dentures is perfect, similar to real teeth;
    5、Total can Store 40 Programs;
    6、PID intelligent temperature control system accurately controls the temperature, the temperature accuracy is ±1℃;
    7、7-inch color touch screen, display all parameters, easy to modify parameters;
    8、Green environmental thermal insulation materials with excellent performance make the temperature more stable;
    9、Memory function, when the power is off and on again, it can automatically start from the beginning of the stage where the power is off.





    Package Including:

    • Silicon carbon sintering furnace 30B sic 1 unit

    • Crucible  3 units

    • Sinter base 1 unit

    • Sintering beads 1 bottle

    • Corundum tube 1 unit

    • Tube base 1 unit

    • Disconnector 1

    • Multimeter 1

    • Repair Kit 1

    • Instruction manual 1

    Ⅲ、FAQ

    Q,Are you the source production factory?
    A,Yes, Zetin has specialized in dental furnace produce for 10 years.
    Q, Do all the product has international certification?
    A,All the products have CE and ISO 9001.
    Q,Can we directly buy a furnace from your plant?
    A,Yes, we accept all kinds of dental furnace orders from different countries.
    Q,What is the minimum order quantity (MOQ)?
    A,MOQ is 1 pcs.
    Q,How to place an order directly to your factory?
    A,You can consult with the online customer service, also you can leave a message on the website, or send an email to zetintech@gmail.com, or call on +86 18538256129, this number same to WhatsApp and WeChat.
    Q, How long is the furnace warranty period？
    A,1 year.
    Q,How long does the production take?
    A,It depends on the order quantity, generally 15 days after receiving the transaction payment.
    Q,What are the trading methods?
    A,EXW, FOB, C&F, CIF, DDU, DDP
    Q,What are shipping methods?
    A,

    Customers can choose any kind of shipping method, by sea, by air, by train, express(UPS, DHL, FedEx, TNT).
